    F3000 Heavy Duty Dump Truck Howo 8x4 Dump Truck 50 Tons

    Ask Lasest Price
    Brand Name : SHACMAN
    Model Number : SX3315DR366
    Certification : CCC,ISO
    Price : USD43,500.00-USD46,000.00 per unit
    Payment Terms : 30%TT as deposit, the balance should be paid before delivery; 100% irrevocable confirmed L/C at sight
    Supply Ability : 3000units/month
    Delivery Time : 30-45 days
    • Product Details
    • Company Profile

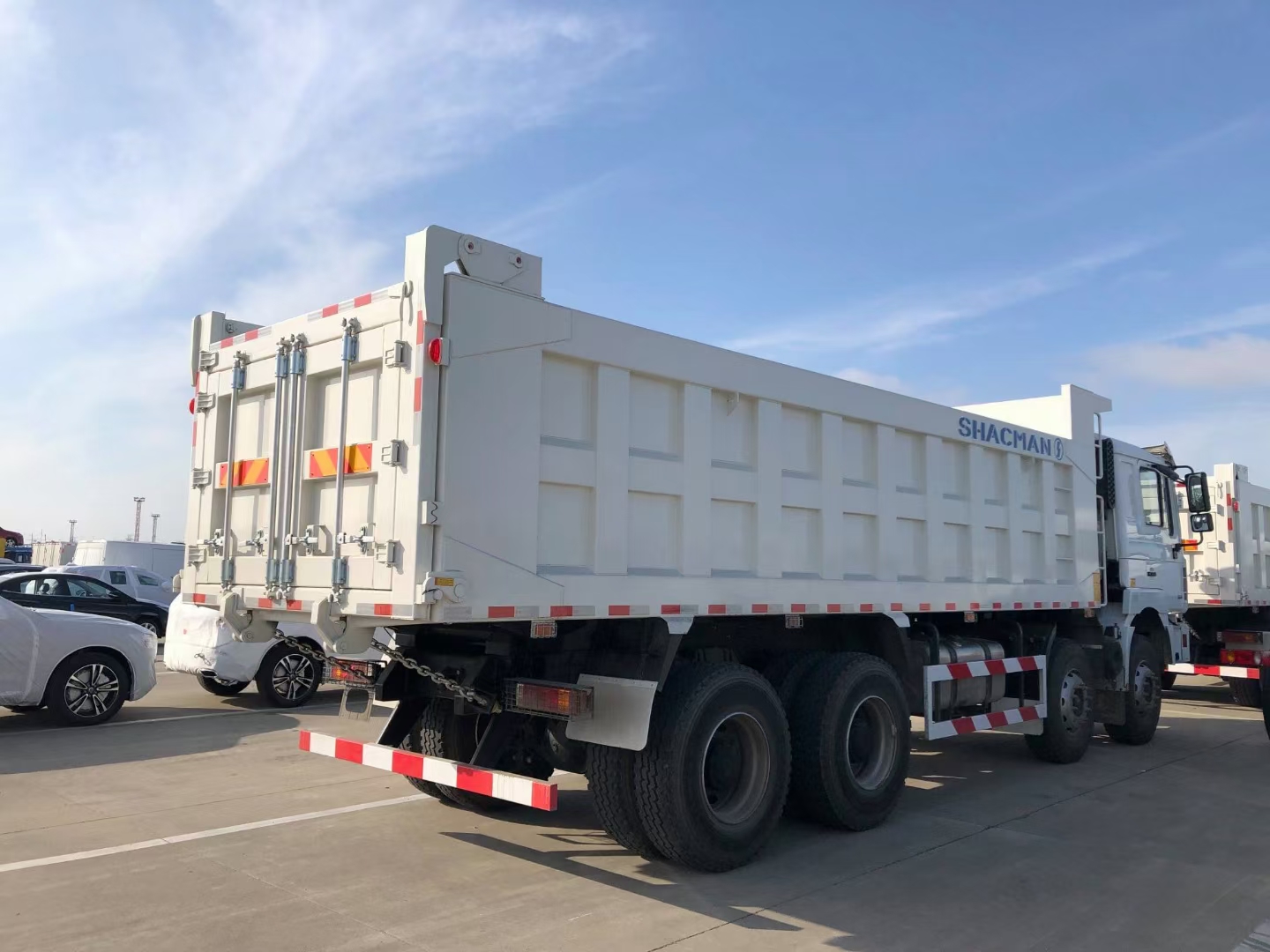

    F3000 Heavy Duty Dump Truck Howo 8x4 Dump Truck 50 Tons

    SHACMAN F3000 8x4 40-50 Ton Construction Work Heavy Duty Dumper Truck


    Dump truck is widely used in transporting the construction material, such as sand, stone, gravel, coal, earthwork etc.Main configuration: hydraulic system, which brand HYVA or Chinese top brandMain material: carbon steel, high-strengthen steel T700/T750 Lifting system: middle lifting, front lifting Hydraulic system: HYVA, PERMCO


    SHACMAN F3000 Dump Trucks can easily cope with long-distance heavy haul transportation such as mines

    and muck in various markets of the world.

    ModelShacman F3000 Dump Truck
    Driving type8x4
    WeightComplete kerb mass (kg)12160
    GVW (kg)32500
    DimensionsLxWxH (mm)12000x2490x3450
    Body size(mm)7400x2300x1100,1300,1500
    Front/rear overhang(chassis)1525/1450
    Wheel base (mm)1800+3800+1350
    Track width (mm)2036/1850
    EngineBrandWeichai
    ModelWP10.336
    Power (kw/HP)247/336
    Max. torque (N.m)/rpm1250/1200-1600
    Displacement (L)9.726
    Emission standardEuro 2
    AxlesBrandHANDE
    Front axle7500kg
    Rear axle16000kg,Double reduction driving axle with inter-wheel differential and differential lock
    Ratio5.262
    Optional9500kgfront axle
    PerformanceMax. speed ( km/h)76
    Min. turning circle (m)15
    Min. ground clearance (mm)314
    Approach/Departure angle(°)28/30
    Max. Gradeability (%)32
    TransmissionBrandFAST
    Model9JS135
    Control typeManual
    Gear shift9-forward and 1-reverse speeds

    dump truck

    Tipper truck


    Packing & Delivery

    Packing:Nude packing after painting wax or according to your requirement.
    Shipping:By bulk cargo carrier, RORO.
