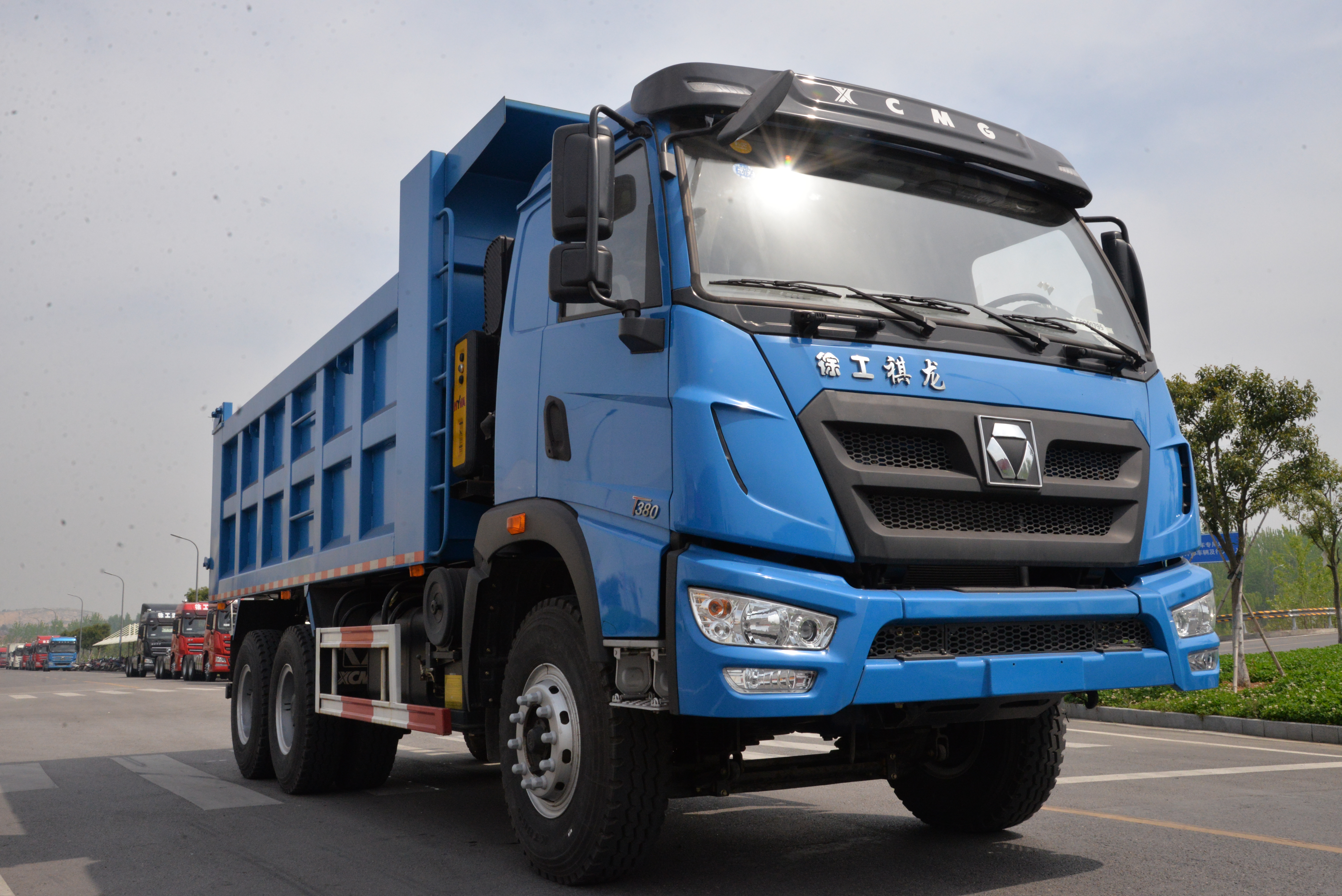

XCMG Brand new 30 Tons 6x4 T-Series LHD 380HP tri axle dump truck

    Buy cheap XCMG Brand new 30 Tons 6x4 T-Series LHD 380HP tri axle dump truck from wholesalers

    Buy cheap XCMG Brand new 30 Tons 6x4 T-Series LHD 380HP tri axle dump truck from wholesalers
    • Buy cheap XCMG Brand new 30 Tons 6x4 T-Series LHD 380HP tri axle dump truck from wholesalers
    • Buy cheap XCMG Brand new 30 Tons 6x4 T-Series LHD 380HP tri axle dump truck from wholesalers

    XCMG Brand new 30 Tons 6x4 T-Series LHD 380HP tri axle dump truck

    Ask Lasest Price
    Brand Name : XCMG
    Model Number : XGA3250D2KC
    Certification : CCC,ISO
    Price : USD38,500.00-USD40,000.00 per unit
    Payment Terms : 30%TT as deposit, the balance should be paid before delivery; 100% irrevocable confirmed L/C at sight
    Supply Ability : 3000units/month
    Delivery Time : 30-45 days
    • Product Details
    • Company Profile

    XCMG Brand new 30 Tons 6x4 T-Series LHD 380HP tri axle dump truck

    XCMG Brand New 30 Tons T-Series LHD 380HP Tri Axle Dump Truck


    整机型号/Vehicle ModelXGA3250D2KC

    设计质量参数

    /Mass parameter

    整备质量/Curb weight15160kg
    最大允许总质量/GVW41500kg

    /Performances

    最高车速/Max Speed79km/h
    最小转弯直径/Min. turning diameter17m
    最大爬坡度(≥)/Grade ability39%
    最大驻坡度(≥)/Hill-hold ability20%
    百公里油耗/Fuel Consumption40L
    油箱容积/Fuel Tank400L

    /Dimensions

    外形尺寸

    /Overall dimensions

    长/Length8625mm
    宽/Width2550mm
    高/Height3450mm
    轴距 /Wheelbase3850+1350mm

    轮距

    /Wheel track

    前轮/Front tire2060mm
    后轮/Rear tire1860mm
    最小离地间隙/Min.Clearance281mm
    接近角/Approach angle25°
    离去角/Departure angle20°
    前悬/Front overhang1485mm
    后悬/Rear overhang1940mm
    货厢尺寸/Cargo size5800×2300×1500mm

    驾驶室

    /Cab

    型号/ModelT3BM
    乘员人数/Passengers2

    发动机

    /Engine

    型号/ModelWD615.47
    总排量/Displacement9.726L
    额定功率/Output power273kW
    最大扭矩/Max torque speed1500/1100-1600Nm/(r/min)

    离合器

    /Clutch

    型号/Model

    Φ430拉式膜片弹簧离合器

    /Pull type diaphragm spring clutch

    操纵方式/Operation

    液压操纵气助力

    /Hydraulic manual

    变速器/Transmission型号/Model9JSD150A
    操纵方式/Operation软轴/Flexible shaft
    前进档速比/Forward ratio12.57/8.39/6.15/4.59/3.4/2.47/1.81/1.35/1.00
    倒档速比/Reverse ratio13.14

    驱动桥

    /Driven axle

    型号/Model16T
    主减速器速比/Ratio5.73
    制动器类型/Brake type鼓式/Drum type
    差速锁/Differential lock

    轴间,轮间差速锁

    /Differential lock between axles and wheels

    前轴

    /Front axle

    型号/Capacity9.5t
    制动器类型/Brake type鼓式/Drum type

    车轮

    /Wheel

    轮辋/Rim9.75×22.5/8.50V-20
    轮胎/Tire13R22.5-18PR/12.00R20-18PR

    车架

    /Frame

    型式/Type

    前部加宽的梯形结构,纵梁为槽形断面

    /Trapezoid structure with widened front, and longitudinal beam with groove section

    主纵梁截面/Main beam320×90×8mm
    衬梁截面/Auxiliary beam304×90×8mm

    车架总成宽度

    /Width of chassis structure

    前Front 940mm;后rear850mm

    悬架

    /Suspension

    前/Front型式/Type纵置多片簧/Multi-spring

    钢板弹簧片数

    /Amount of spring plate

    10
    后/Rear型式/Type纵置多片簧/Multi-spring

    钢板弹簧片数

    /Amount of spring plate

    13

    转向系

    /Steering System

    转向器型式/型号/Steering type

    Φ120/循环球式液压助力

    /Circulating ball type hydraulic power

    转向器速比/Ratio23.27
    转向油泵最大压力/Max pressure of pump15MPa

    制动系

    /Brake System

    额定工作压力/Rated working pressure1MPa
    行车制动系型式/Driving brake双回路气压制动/Dual circuit pneumatic braking
    驻车制动系型式/Parking brake弹簧储能断气制动/Spring energy storage air brake
    辅助制动系型式/Assistant brake发动机排气制动/Engine exhaust brake

    电气系

    /Electric System

    电压/Voltage24V
    发电机功率/Generator power2.2kW

    蓄电池电压/电容

    /Battery voltage and Capacitance

    2×12 V/165Ah
