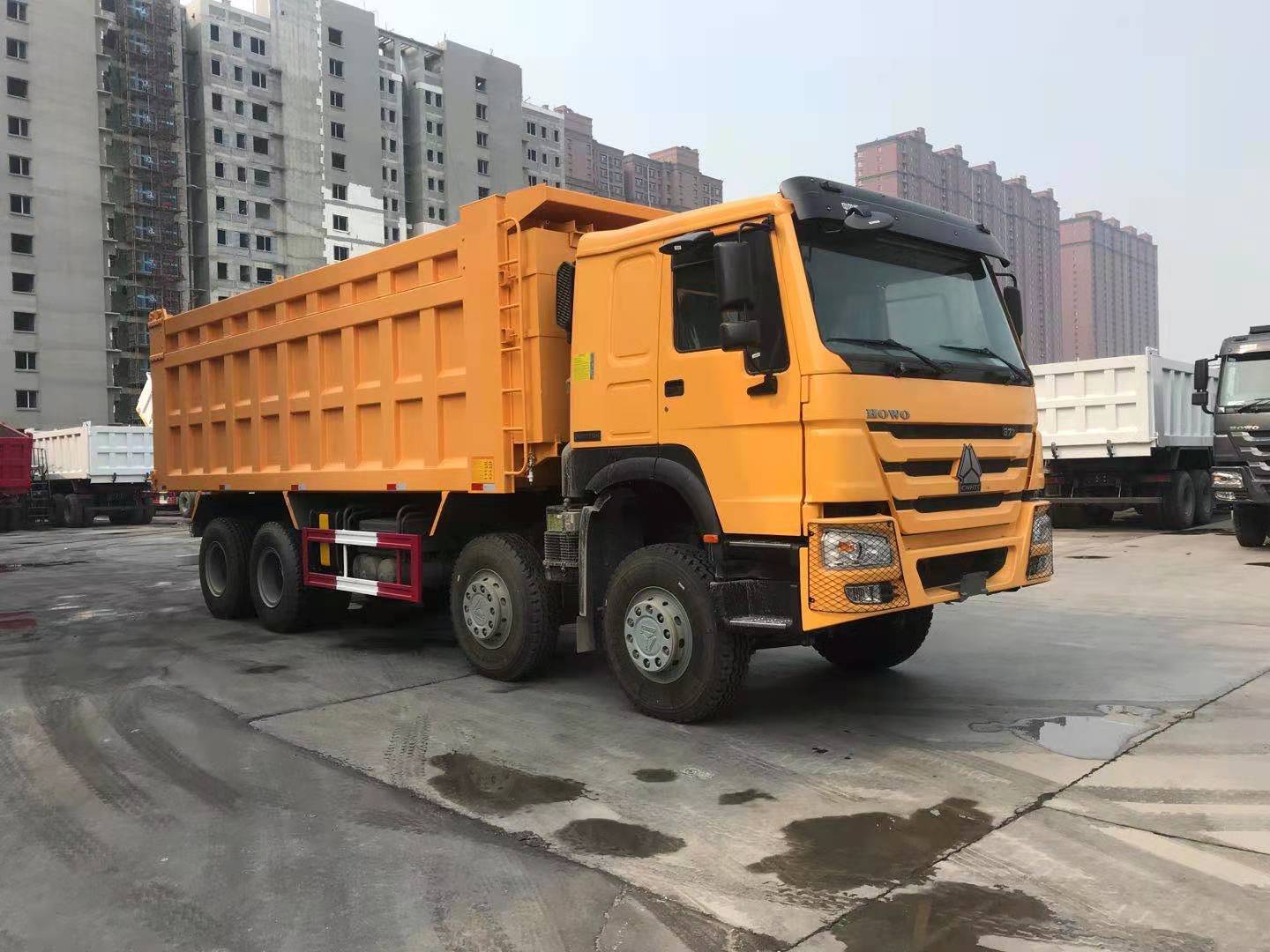

    8x4 Howo 12w Dump Truck 30 Cbm 40 Ton Dump Truck ZZ3317N4867A

    Ask Lasest Price
    Brand Name : HOWO
    Model Number : ZZ3317N4867A
    Certification : CCC,ISO
    Price : USD44,000.00-USD45,500.00 per unit
    Payment Terms : 30%TT as deposit, the balance should be paid before delivery; 100% irrevocable confirmed L/C at sight
    Supply Ability : 3000units/month
    Delivery Time : 30-45 days
    • Product Details
    • Company Profile

    8x4 Howo 12w Dump Truck 30 Cbm 40 Ton Dump Truck ZZ3317N4867A

    HOWO Brand New 8x4 371HP 12 Wheels 30 Cbm 40 Tons Heavy Duty Dump Truck


    HOWO 8x4 371HP Dump Truck
    Model: ZZ3317N4867A
    Cabin: HW76 standard, 2 seats, 1 sleeper, with A/C
    Engine: SINOTRUK WD615.47, diesel 6-cylinder, 274kw, 371ps, 1500N.m, 9726cc, Euro-2
    Transmission: HW19710, manual, 10F+1R
    Power take-off: HW50
    Front axle: HF9, drum
    Rear axle: HC16, drum
    Frame: 8+8/300
    Steering gear: ZF8118
    Suspension (F/R): Enhance leaf spring 10/12 pcs
    Bumper: High
    ABS: Without
    Exhaust system: Standard type
    Tire: 12.00R20, 12+1 pcs
    Fuel tank: 300L
    Axle base: 1800+4800+1350mm
    Body inner size: 8500x2300x1500mm, floor 8mm, side 6mm, hydraulic front lifting
    Overall dimensions: 11445×2496×3190mm
    Curb weight: 15190kg

    ModelHOWO 8X4 DUMP TRUCK
    Gross weight kg31000
    Curb weight ( kg)15190
    Engine
    Make: SINOTRUK
    WD615.47, diesel 6-cylinder, 274kw, 371ps, 1500N.m, 9726cc, Euro-2
    Fuel: Diesel
    TransmissionHW19710, SINOTRUK 10 forward & 2 reverse manual gearbox
    Ratio of Every GearTorque
    (Nm)
    Rated Speed
    (rpm)
    Weight
    (kg)
    Oil Capacity
    (L)
    1st2nd3rd4th5th6th7th8th9th10thR1R2
    14.2810.627.875.874.383.262.431.81.341.0013.913.181900260036312
    Steering GearZF8118, German ZF hydraulic steering with power assistance
    ClutchSingle plate φ430 diaphragm spring clutch
    Number of axle4
    Front axle
    HF9 STEYR/HOWO drum brake front axle, axle loading capacity is 9000kg
    Driving axle
    HC16 Rated loading capacity: 16T,
    Double reduction, casting axle housing, drum brake
    Front/Rear track(mm)2022/1830
    Overhang front/rear(mm)1500/2125
    Wheel base (mm)1800+3500+1350
    Tires12.00R20, 12+1(spare tire)
    Approach/departure angle19/21(°)
    Maximum speed(km/h)78
    Fuel Tank300L
    Van dimension (mm)8500x2300x1500mm, floor 8mm, side 6mm, hydraulic front lifting
    Suspensionfront and rear leaf spring suspension+ shock absorber+ transverse stabilizer
    Electrical SystemVoltage: 24V
    Batteries: 2x12V 165Ah
    Starter: 24V, 5.5KW
    Alternator: 28V/80A
    Braking SystemService brake: Dual-circuit air brake
    Parking brake: Spring brakes on rear axle
    Auxiliary brake: Exhaust valve braking(EVB)
    ColorStandard: red, yellow, green, white, blue, black
    Optional: others you liked
    Overall Dimension(L X W X H mm)11445×2496×3190mm
    OptionsElectrical tilting cab
    MTCO tachographs
    ABS

    dump truck

    Tipper truck

    Overall testing guarantees every vehicle is a competitive product. Sinotruk owns professional
    road testing grounds for heavy trucks, so every new developed product will be tested by extremely
    strict professional experiments during development process.

    dumper truck
