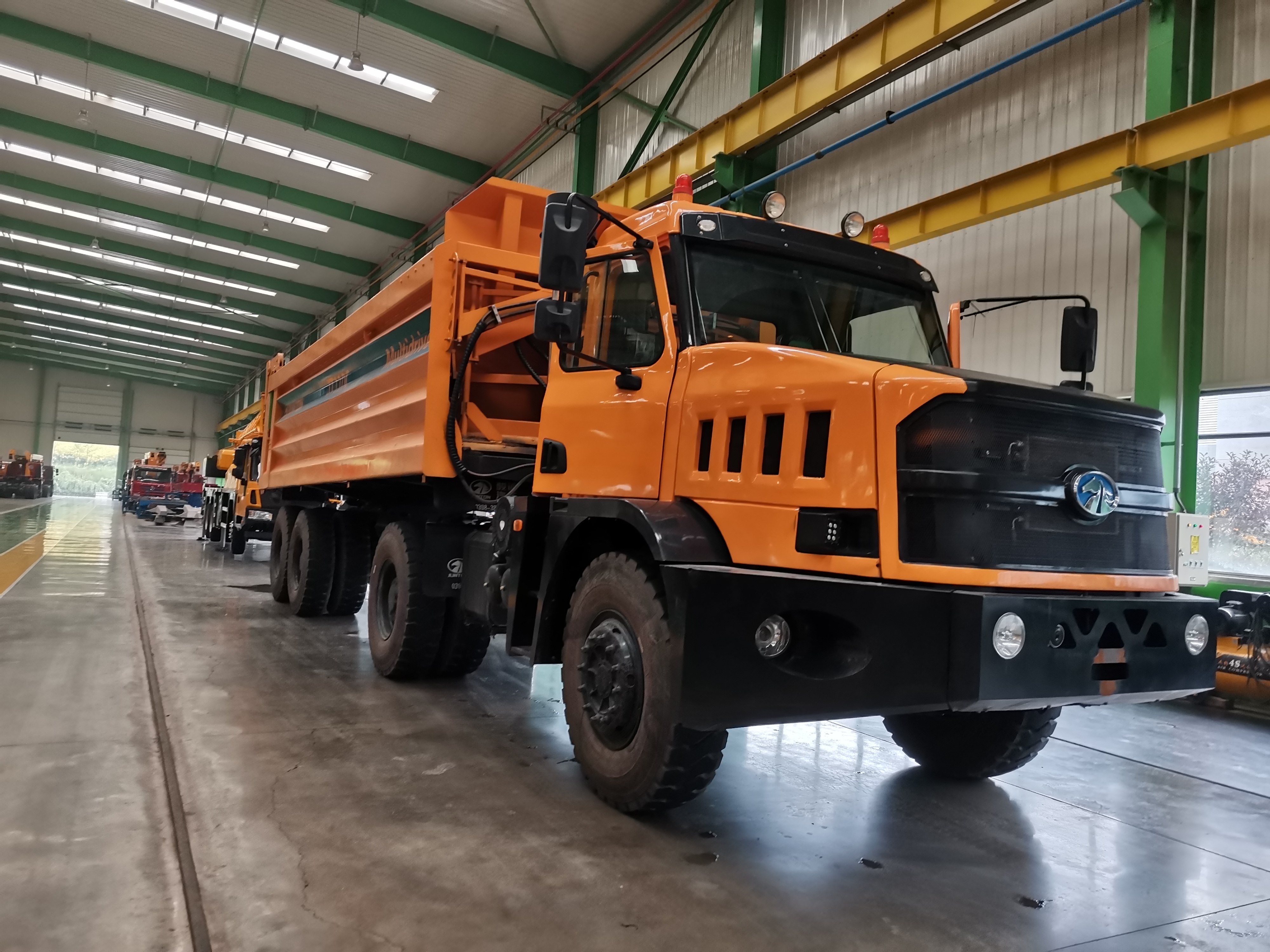

1. 70-110 Tons 8X4 8X8 Flat Push Articulated Dump Truck

2. The Articulated Mine Dump Truck is a specially constructed tractor and semi trailer with an intermediate driveline, steering systemConnected with auxiliary devices, it can realize the whole vehicle all-wheel drive and steering special train chassis, equipped with various utility jackets,It is suitable for all kinds of special vehicles under harsh working conditions.The whole mine dump truck can be divided into four major parts: the main part of the deputy part of the steering moving system part mount part.The core technology mainly includes auxiliary vehicle driving system, auxiliary vehicle steering system, flat push material unloading cargo system.




   Model	Articulated Mine Dump Truck
   Gross weight (kg)	108000
   Curb weight (kg)	38000
   Engine	Model: C13.540 Rated power/speed(kw/rpm): 400/1900 Displacement: 13L
   Transmission	FAST 12JS260A
   Cab	Long head
   Suspension	Leaf spring suspension
   Number of axle	4
   Front axle	12T Drum
   Rear axle	32T Drum
   Tires	14.00-25
   Maximum speed(km/h)	55
   Van dimension	8500x3100x1600
   Overall Dimension(L X W X H mm)	13500x3400x4300

   Advantages of articulated mine dump truck: 1. High security.Unloading safety, the vehicle unloading, no lifting, good stability, there is no rolloff phenomenon.At the same time, the unloading can be realized in the whole working condition, the vehicle can carry out the unloading operation in the forward, reverse and stop state.Also according to the need to adjust the speed and unloading speed, to achieve amortized unloading.2. High passability: the main and auxiliary vehicles are connected by an articulated structure. When passing through soft ground, rough areas and various obstacles (steep slopes, side slopes, ditches, steps, bushes and water barriers), the tires make full contact with the ground and the driving force is more fully utilized.



3.

4. 3. High mobility: the Articulated Mine Dump Truck adopts an 8×8 or 8×6 driving mode. When turning, the auxiliary vehicle follows the steering direction.4. Large volume.5. Low failure rate and high attendance rate: the main and auxiliary vehicles are connected by an articulated flexible structure. When the articulated dump truck passes the rough road, all the tires will be connected to the groundGood contact, make full use of the ground adhesion, avoid the part of the rigid structure of the wide-body vehicle through the rough road.The tyre and the ground do not contact, the vehicle effective power is low.The flexible joint structure can decompose the vehicle through the rough roadThe impact force generated in the road can effectively relieve and avoid the plate spring fracture caused by the large impact force between the ground and the vehicle.Loose bolt, etc
