Perfect after-sales service and customer service.

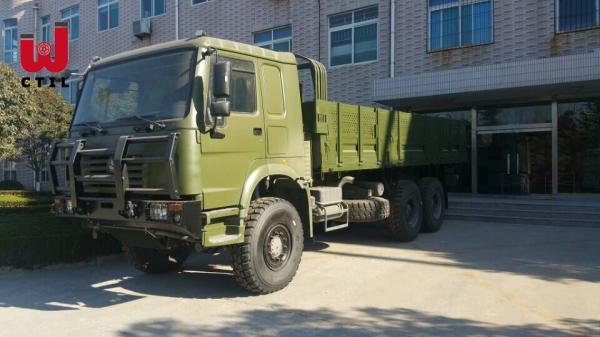

| Model | HOWO 6X cargo truck |
| Gross weight kg | 25000 |
| Curb weight ( kg) | 12450 |
Engine
| Make: SINOTRUK Diesel: 4-stroke direct injection diesel engine Model: WD615.92C 270HP EURO III emission standard, 6-cylinder
in-line with water cooling, Bore x Stoke: 126mm x 130mm Maximum output: 270HP(199KW) Displacement: 9.726L Fuel: Diesel |
Cab
| HW76, electric windows for both doors, extended Cab, single berth,
up/down and front/back adjustable steering wheel, new European
style whole heating and ventilating system, | Item | Name | | 1 | Warm wind supply | | 2 | Horn Button | | 3 | Steering Wheel | | 4 | Combination Instrument | | 5 | Cruise Switch | | 6 | Hand Braking Valve | | 7 | Semitrailer Hand Braking Valve | | 8 | Transmission Handle | | 9 | Rocker Switch | | 10 | Ashtray | | 11 | A/C Control Panel | | 12 | Cigarette Lighter |
with electronic controlled model, with four points suspension & absorber and stabilizer equipment, all the truck with the double-locking
safety belts and outside sun visor. Left Hand Drive Model |
| Transmission | HW15710C, SINOTRUK 10 forward & 2 reverse manual gearbox | Ratio of Every Gear | Torque
(Nm) | Rated Speed
(rpm) | Weight
(kg) | Oil Capacity
(L) | | 1st | 2nd | 3rd | 4th | 5th | 6th | 7th | 8th | 9th | 10th | R1 | R2 | | 14.28 | 10.62 | 7.87 | 5.87 | 4.38 | 3.26 | 2.43 | 1.8 | 1.34 | 1.00 | 13.91 | 3.18 | 1900 | 2600 | 363 | 12 |
|
| Steering Gear | ZF8118, German ZF hydraulic steering with power assistance |
Clutch
| Single plate φ430 diaphragm spring clutch |
| Number of axle | 3 |
Front axle | STR |
Driving axle
| ST16 Rated loading capacity:16T, Ratio:4.42, 4.80/5.73 Double reduction, casting axle housing, drum brake |
| Front/Rear track(mm) | 2022/1830 |
| Overhang front/rear(mm) | 1500/2734 |
| Wheel base (mm) | 3800+1350 |
| Tires | 12.00R20, radial tires, 10+1(spare tire) |
| Approach/departure angle | 31/14 (°) |
| Maximum speed(km/h) | 102 |
| Fuel Tank | 300L |
| Van dimension (mm) | 30-35tons,9500×2420×2500(mm) |
| Suspension | Steer Axle: Parabolic springs with shock absorbers and stabilizer Drive Axle: Parabolic springs with divided balance shaft and
stabilizer |
| Electrical System | Voltage: 24V Batteries: 2x12V 165Ah Starter: 24V, 5.5KW Alternator: 28V/80A |
| Braking System | Service brake: Dual-circuit air brake Parking brake: Spring brakes on rear axle Auxiliary brake: Exhaust valve braking(EVB) |
| Color | Standard: red, yellow, green, white, blue, black Optional: others you liked |
| Overall Dimension(L X W X H mm) | 11168×2496×3200(mm) |
| Options | ABS, Electrical tilting cab, MTCO tachographs |
3. Factory:
SINOTRUK has an annual output of 180,000 vehicles and 200,000
engines capacity.
4. 6x6 heavy duty trucks Packing: Nude packing after painting wax or according to your requirement.
Shipping:By bulk cargo carrier, RORO
5. Our Advantages:
(1) Competitive Factory Price and Excellent Quality
(2) More than 20 years' experience as a manufacturer
(3) Products Quality Certification SGS CCC ISO
(4) Perfect after-sale service
(5) Customized products available with us
(6) Export to more than 90 countries and regions
6. Cargo Transport Truck Warranty
(1) One year quality guarantee or within 100000km, which comes the
first.
(2) Other spare part could be supplied by EXW at cost prices.
(3) Regularly callback to know the vehicle's working status.
(4) 24h online service
7. heavy commercial vehicles FAQ
Q1. : Are your manufacturer ?
A : Yes! We can totally manufacture the trucks as you required.
Q2: Do you have a good orgonization of shipping vessle ?
A: Yes, we have a good and long term cooperation with the world
first class famous shipping company line,like MSK,PIL,SUNSHINE
SHIPPING,ETC.The order over 500 units of vehicle,we will lease a
vessel.
Q 3 : How about your warranty items?
A : We supply original spare parts of our vehicles, if you need, we
will show you spare parts list for your choosing to make sure daily
maintain of your vehicles.
Q 4 : Can I be your agent in my country?
A : It is Ok if the order is appropriate, we looks forward to
long-term cooperation with you.
Q 5 : What is the delivery time and payment term?
A : Our common products delivery time is 10-35 working days except
some definitely special vehicles. We accept 30% T/T deposit and 70%
balance T/T or 100% L/C. More details, please contact with our
salesman.
