    3 Axle 60cbm Cement Tanker Truck CCC Dry Bulk Cement Tanker

    Ask Lasest Price
    Brand Name : CTIL
    Model Number : CTILTANK0413
    Certification : CCC,ISO
    Price : USD13000-18000/unit
    Payment Terms : 30%TT as deposit, the balance should be paid before delivery; 100% irrevocable confirmed L/C at sight
    Supply Ability : 3000units/month
    Delivery Time : 30-45 days
    • Product Details
    • Company Profile

    3 Axle 60cbm Cement Tanker Truck CCC Dry Bulk Cement Tanker

    3 Axle 50-60cbm New Bulk Powder Cement Tanker Heavy Truck Semi Trailer


    Bulk Cement Trailer is suitable for the transportation and air pressure unloading of dry materials such as fly ash, cement, lime powder, ore powder, etc. whose particle diameter is not greater than 0.1mm.


    Bulk Cement Trailer uses its own engine power to drive a vehicle-mounted air compressor through a power take-off.

    The compressed air is sent into the air chamber at the lower part of the sealed tank through a pipeline, so that the cement on the fluidized bed is suspended into a fluid state.


    When the pressure reaches the rated value, the unloading butterfly valve is opened, and the fluidized cement flows through the pipeline for transportation.


    The air bag type has a large carrying capacity, a fast discharge speed and a small residual amount.


    1. 3 Axle 45-60cbm New Bulk Powder Cement Tanker Semi Trailer technological specifications


    Trailer Model45-60 M3 BULK CEMENT SEMI TRAILER
    Overall Dimension
    (Lx W x H)(mm)
    12000x2490x3990mm
    Functiontransport bulk powder
    Thickness(mm)Tank body: Q235A 5mm carbon steel
    End plate: Q235A 6mm carbon steel
    Loading Weight( KG)50000
    Axle3x13Ton, FUWA brand
    Air compressor37 KW,0.2Mpa. 1000r/Min(12m3/minute) Bohai brand
    Compartment1
    Manhole cover500mm manhole cover. 1 sets with 1 breath valve.
    Discharge valve4''disc valve
    Discharge pipe4''seamless steel tube
    Suspension systemStandard Mechanical suspension
    Bottom valve quantity1 unit
    Steel Spring10/10/10 leaf spring suspension
    EngineDiesel engine: Weichai brand model:4102
    Tire12R22.5 12units tubeless tire.
    Traction Pin50mm or optional 90mm
    Spare Wheel Bracket2 pieces
    Tool Box1 Standard
    Landing GearStandard 28 tons
    Brake systemDual Line braking system
    Brake air chamberWABCO brand, Six big double air chambers
    Electrical system1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness)
    Tail lamp with turn signal, brake light & reflector, side lamp etc.
    One set 6-core standard Cable.
    Side GuardAccording to customer's requirement
    PaintingAccording customer requirement
    PackingPolish with wax before shipping

    We are one of the leading and professional manufacturers in China with wide experience and expertise. Please rest assured to get our 3 Axle 45-60cbm New Bulk Powder Cement Tanker Semi Trailer for sale. For more info, contact us now.

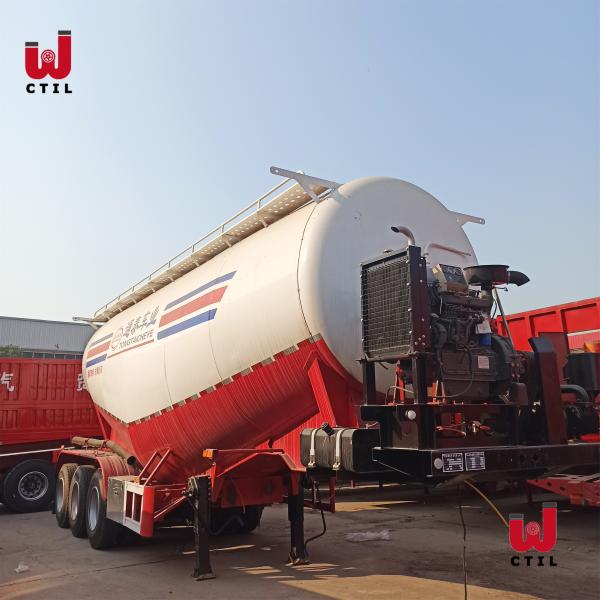

    2. Powder Tanker Trailer Photos

    cement tanker

    cement trailer

    bulk trailer

    dry bulk trailer


    3. Choose your truck
    HOWO -7 tractor trucktractor truckDriving Model:4x2, 6x2, 6x4
    Engine:290hp,336hp,371hp,420hp
    Gearbox: HW19710, HW19712
    Tire:1200R20 Radial tire, 12R22.5Tubless tire
    payload:20-50t
    HOWO -A7 tractor trucktruck headDriving Model:4x2, 6x2, 6x4
    Engine:270hp,300hp,340hp, 380hp, 420hp
    Gearbox: HW19710, HW19712
    Tire:1200R20 Radial tire
    payload:20-50t
    HOWO E7
    tractor truck
    tractor headDriving Model:6x4
    Engine: 310hp, 340hp, 350hp
    Gearbox:HW19712, HW19712CL
    Tire:295/80R22.5, 12R22.5, 12.00R20
    payload:20-50t
    HOWO-T7H tractor trucktruck headDriving Model:4x2, 6x2, 6x4
    Engine: 400hp, 440hp, 540hp,
    Gearbox:HW19712, HW20716, HW25712
    Tire:295/80R22.5, 315/70R22.5, 12.00R20
    payload:20-50t

    We are one of the leading and professional manufacturers in China with wide experience and expertise. Please rest assured to get our custom tri axles carbon steel material crude oil tanker tractor trailers capacity 60000l for sale. For more info, contact us now.
