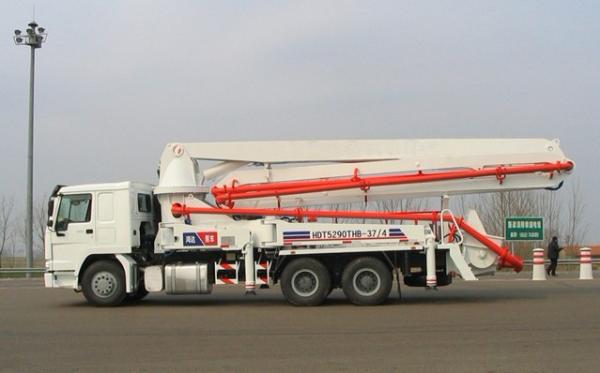

1. SINOTRUK HOWO 6X4 Chassis 37M Cincrete Pump Truck

2. 1. HOWO truck manufactures-SINOTRUK, founded in 1953, is the earliest heavy-duty vehicle manufacturer in China.

3. It once developed and manufactured China's first heavy-duty vehicle (the Yellow River JN150).

4.

5. The concrete pump truck can be divided into large concrete pump truck and small concrete pump truck according to the length of arm frame.
   The concrete pump truck is modified on the chassis of the truck, which is fitted with a motion and power transmission, a pumping and stirring device, a cloth device and other auxiliary devices.
   The driving force of the concrete pump truck transmits the power of the engine to the hydraulic pump group or the rear axle through the dynamic split box, and the hydraulic pump pushes the piston to drive the concrete pump. Then the concrete is transported to a certain height and distance by using the cloth rod and conveying pipe on the pump.
   In addition to driving the pump truck, the engine of the concrete pump is also used to drive the pumping mechanism, the stirring mechanism and the cloth mechanism.
   The power of each working device of the concrete pump truck originates from the automobile engine.
   When the concrete pump truck works, the power of the automobile engine passes through the gearbox to the compartment, then passes through the transfer box to each hydraulic pump or the chassis rear axle.
   When the driver issued a switch to the pump position of the instructions, pneumatic solenoid valve control on the transfer box on the cylinder to promote the fork, fork and then push the separation gear to switch to the pump position, while cutting the power to the rear axle, so that the car in the state of the vehicle. Conversely, switch to the driving position. Now the control of the pump is basically realized by the remote controller.

6. 2. SINOTRUK HOWO 6X4 Chassis 37M Cincrete Pump Truck

   HOWO 37M Concrete Pump Truck
   Chassis Model	SINOTRUK HOWO ZZ5437N5067W
   Engine	WD615.47, 371hp
   Drive Model	6x4
   Fuel Type/Emission	Diesel , Euro II
   Transmission	HW19710,10 forward&2 rear
   Steering	ZF hydraulic steering with power assistance
   Front axle	HF7,7tons×2 loading capacity
   Rear axle	ST16,16×2 tons load capacity
   Cab	HW76 cab, One sleeper, With air conditioner
   Rim/Tires	12.00R20 Radial Tire,13 pieces including 1 spare tyre
   Fuel Tank	400L
   Boom arm length	37M
   Slewing ring	Italy LALEONESSA SPA Reducer
   Reducer	Italy REGGIANA REDUTTORI
   Proportional multi-way valve	Germany HAWE
   Hydraulic pumps, valves	Germany Rexroth
   Transfer case	Germany STEIBEL
   Oil cooler	United States CRADLE FLUID
   Wireless and wired remote	Germany HBC
   Electrical System	China, LG ,Omron, Schneider,Siemens

7.


8. 3. Vehicles Experiments

   We insist “every step counts for success”, so every vehicle will be made overall testing to guarantees its competitive. CNHTC owns professional road testing grounds for heavy trucks, so every new developed product will be tested by extremely strict professional experiments during development process.



   4. Other models



9.

Qingte Group, founded in 1958, is a multi-regional, multi-industry and diversified large enterprise group and has 6 production bases in Qingdao, Beijing, Weifang, Chengdu, Taiyuan and Changsha and 26 subsidiaries in total. After more than 50 years of development, Qingte has become the important special vehicle and components and parts production and export base in China.
The group adheres to the independent development with introduction, absorption and re-innovation with business scope covering special vehicle manufacturing, vehicle axle production, automobile spare parts manufacturing, real estate development and international trade, etc. The annual output of special vehicle reaches 10,000 units,including SINOTRUK/SHACMAN/DONGFENG/FAW/BEIBEN dump truck, tractor truck,concrete mixer truck, garbage truck, sweeper truck, fuel tank truck, sprinkler truck, asphalt distribution truck, sewage suction truck, fecal suction truck,etc.

The Technical Center of Qingte Group was rated as “National Identified Enterprise Technology Center”, and was granted as “Post-Doctoral Research Center” and “National Approved Central Lab” successively. The group boasts more than 500 scientific and technical personnel, including more than 30 senior experts. With strong technical force, the group can independently develop all kinds of axles for special vehicle, special type of vehicle, commercial vehicle and support axle, etc.
Qingte Group has successively won the honorary titles of “National Machinery Industry Advanced Group”, “First Batch of Outstanding Private Enterprise in China”, “National Automobile and Auto Parts Export Base”, “Most Influential Brand in China’s Machinery Industry”, “China’s Top Ten Enterprises with Self-owned Brand in Auto Parts”, and “★★★★ Enterprise in China's Auto Service Star Appraisement”, etc.
The Group has established a comparatively perfect marketing service system with network covering the whole country and business covering Asia, America, Europe and Africa, etc.
Qingte Group will always take “Sticking to independent innovation with new technique and brand building as the guidance, and moving forward to research-based, high-end oriented, high quality and high value-added direction” as the guiding concept, continue to provide users with the best product and quick service, and make unremitting endeavor to become the world-class special vehicle manufacturer, commercial vehicle axle and components and parts supplier!
