    SINOTRUK HOWO H7 10 Wheelers Dump Truck For The Philippines

    Ask Lasest Price
    Brand Name : SINOTRUK
    Model Number : HOWO H7
    Certification : CCC.CE
    Price : 35000
    Payment Terms : T/T, L/C, Western Union, MoneyGram
    Supply Ability : 3000units per month
    Delivery Time : 30days
    • Product Details
    • Company Profile

    SINOTRUK HOWO H7 10 Wheelers Dump Truck For The Philippines

    Our main products include full series products of CNHTC(HOWO,STR,Golden Prince,etc.),buses, trailers, including dump truck, tractor truck, concrete mixer truck, sprinkler truck,water/Oil tank truck, truck mounted crane, concrete pump truck.etc, low bed semi-trailer,flatbed semi-trailer, bulk cement semi-trailer, skeleton semi-trailer and spare parts for them.

    This dump truck we have new and used one,You can choose according to your requirement!

    1. Dump Truck Main Specifications:(Configuration can be changed as required)

    Truck ModelZZ3257N3647A, Left Hand Drive Model for the Philippines
    Truck BrandSINOTRUK -HOWO H7
    Dimension(Lx W xH)8545x2496x3386
    Cargo body size (L*W*H, mm)5800x2300x1400
    Cargo body thickness(mm)bottom:8mm, side:6mm, or customized as you required
    Lift type of CarriageVentral lifting or front tipping
    Approaching angle/Departure angle(°)19/26
    Overhang(front/rear) (mm)1500/1739
    Wheel base (mm)3625+1350
    Max speed(km/h)75
    Curb weight(kg)12290
    Loading Weight(kg)25000
    Fuel Tanker300L with locking fuel cap
    Fuel consumption(L/100km)32
    ClutchSingle-plate dry clutch Φ430mm
    EngineModel

    WD615.69,4- stroke direct injection diesel engine, 6 cylinders in line with water cooling ,

    Horse Power,340HP
    Emission StandardEURO 4
    TransmissionModelHW 19710,10 forwards and 2 reverse
    Brake systemService brakeDual circuit compressed air brake
    Parking brake

    spring energy, compressed air operating on

    rear wheels

    Auxiliary brakeEngine exhaust brake
    Steering systemModelQJ
    Front axleHF9
    Rear axleHC16
    Tire12.00R20, 12.00-20
    Electrical systemOperating voltage24V,negative grounded
    Starter24V,7.35KW
    Alternator28V,1500W
    Batteries2*12V.165Ah
    Tips to build your truck body
    Transport mediumFloor(mm)Side(mm)
    Soil or Stone84
    Construction Waste106
    Big Ore128
    Coal64
    clay84
    Grain or Chemical fertilizer64

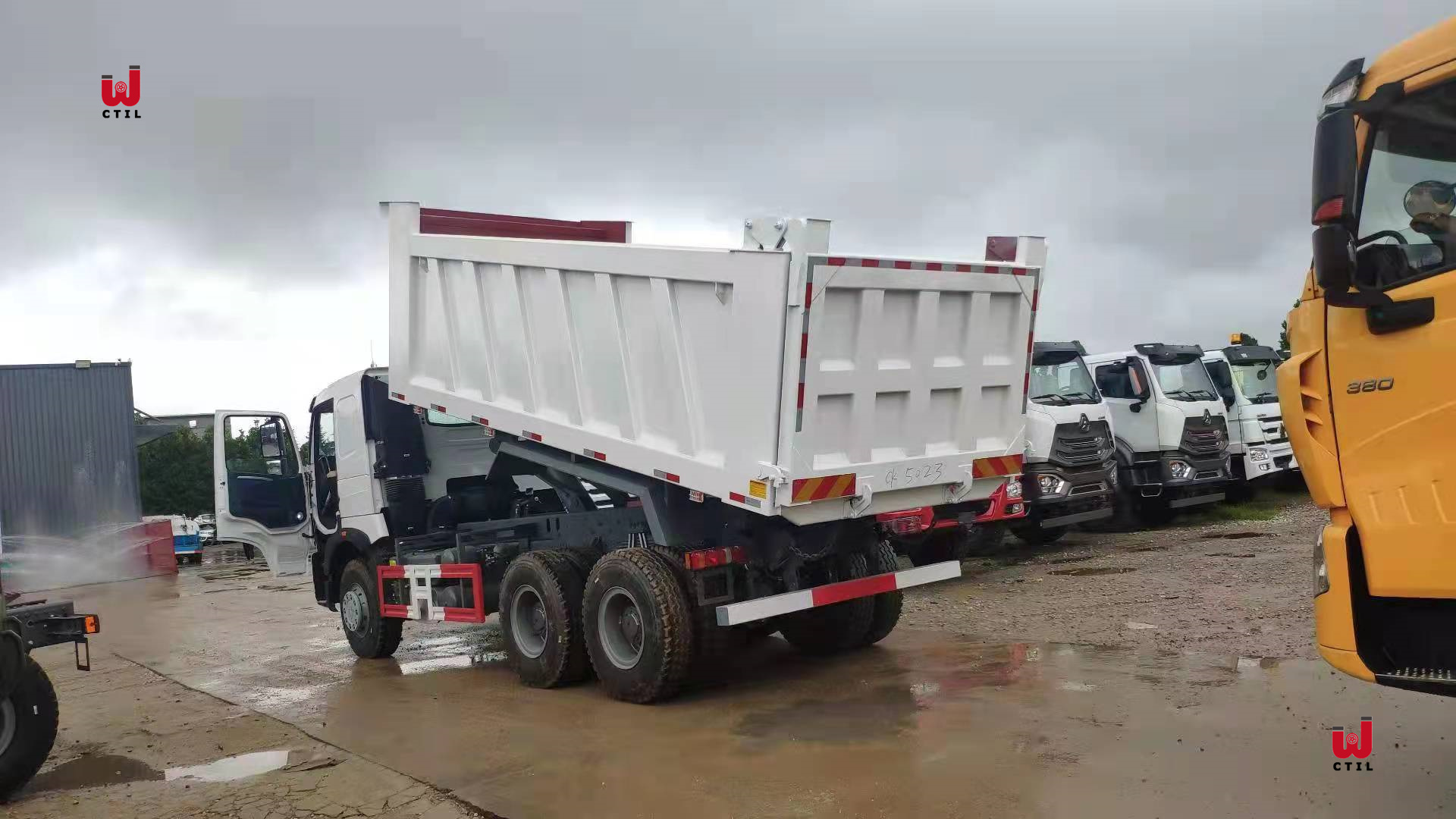

    Brand new HOWO dump trucks in our warehouse, waiting for delivery. In order to protect our trucks from the sea water and rain, we painted wax, so color looks not so bright.

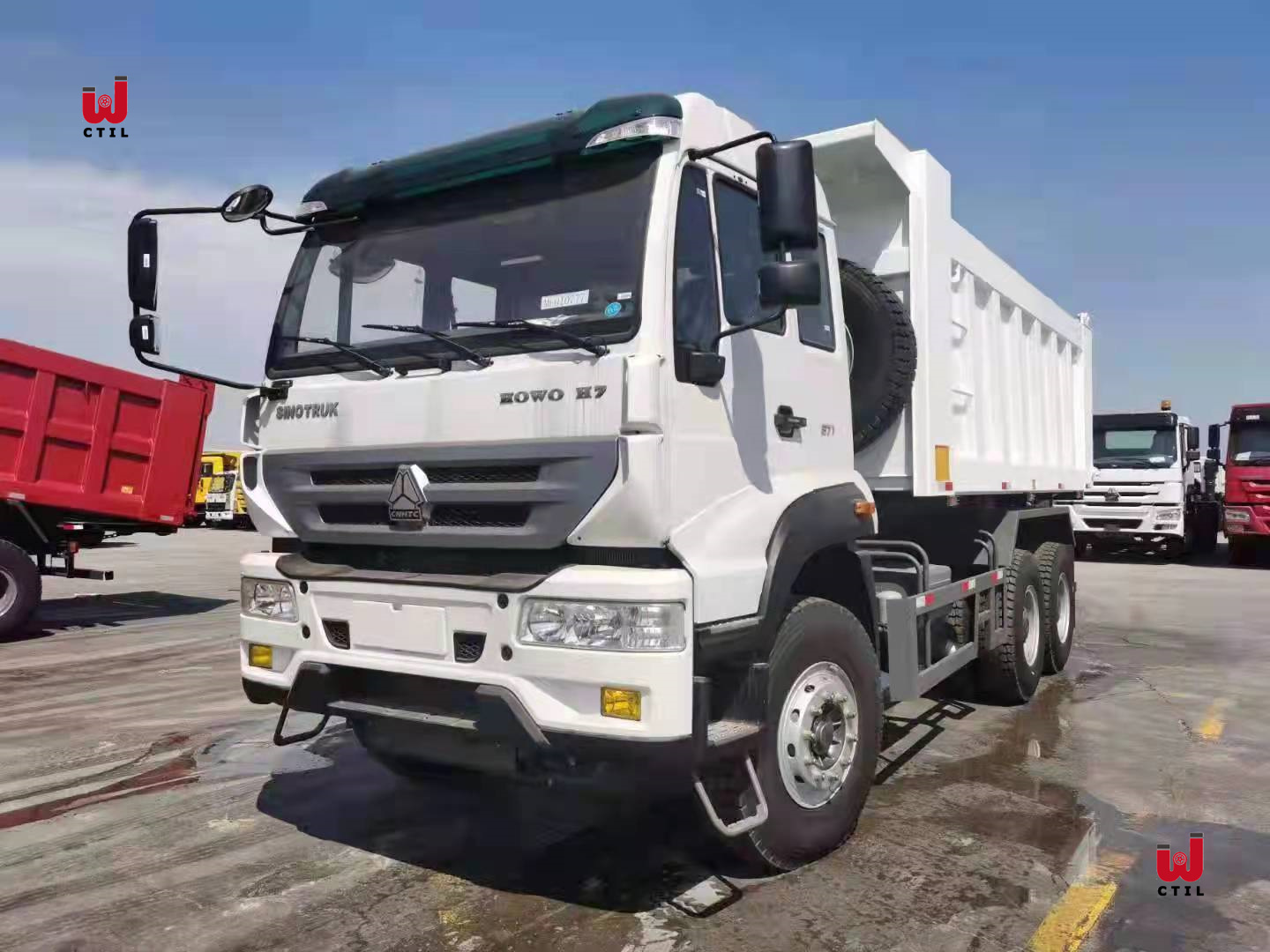

    HOWO H7 10WHEELERS DUMP TRUCK

    HOWO H7 EURO 4 DUMP TRUCK
